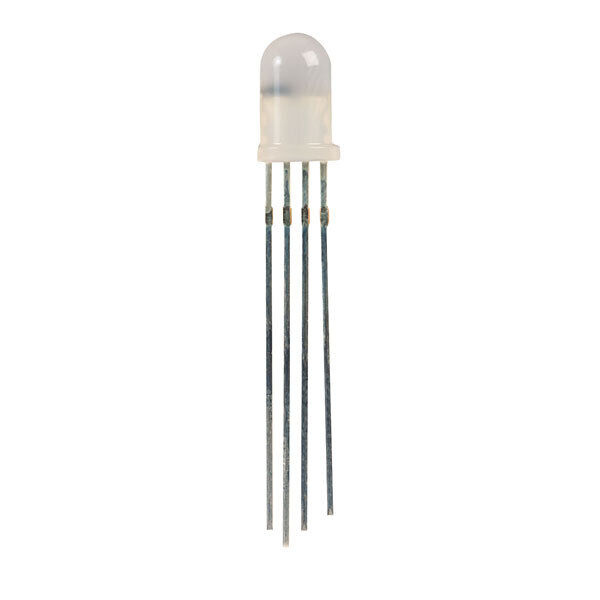

5mm Round Led Diffused RGB Programmable
OST4ML5B32A 5mm RGB Addressable LED 6V 15mA Diffused
Product description
This 5 mm RGB LED has an intelligent control function that ensures that the LED can be controlled accurately to provide the desired light output. The built-in IC uses CMOS technology, and the LED can receive and decode data completely through a single wire. Multiple LEDs can be connected in series or cascade to enable the design of complex lighting patterns.
256 Grayscale circuit level adjustment
Built-in power-on reset circuit
High brightness
White diffuse lens
5mm Standard directivity
|
Producer
|
OPTOSUPPLY |
|
Type of diode
|
LED programmable |
|
Diameter LED
|
5mm |
|
Color LED diode
|
RGB |
|
Lighting angle
|
30° |
|
Wavelength λd
|
465...475nm, 520...530nm, 620...630nm |
|
Lens diode
|
diffusion, white |
|
Current of LED diode
|
15mA |
|
Edit
|
THT |
|
Front
|
convex |
|
Working temperature
|
-30...85°C |
|
LED version
|
three colors |
|
Brightness of the red color
|
350...450mcd |
|
Brightness of the green color
|
500...600mcd |
|
Brightness of the blue color
|
150...200mcd |
