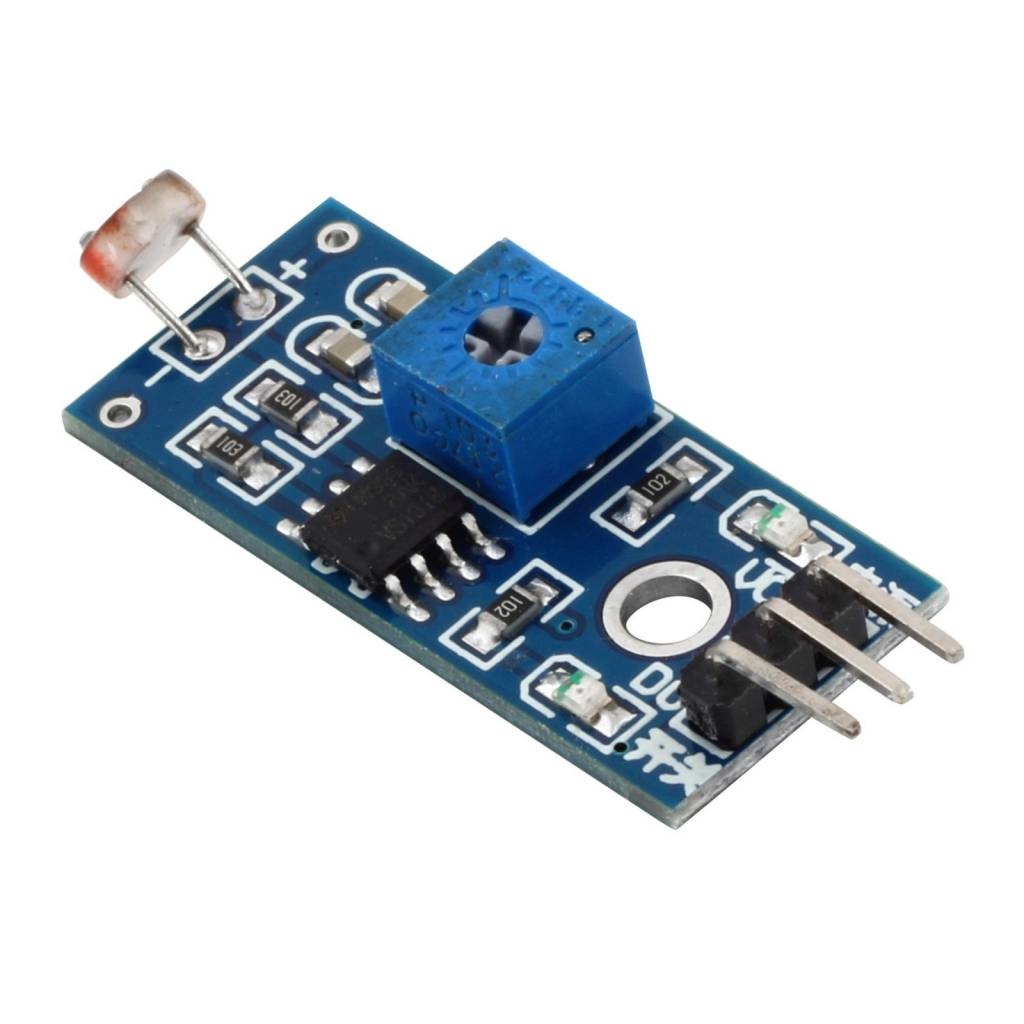

LDR Sensor Module 3-Pin

What is a photosensitive sensor module and why is it essential for my project?

If you are developing a smart automation solution, a night light, a motion detection system, or a homemade plant watering system, a photosensitive sensor module is one of the most widely used and reliable components in the world of electronics. This module is specifically designed to measure light intensity and convert it into an electrical signal that can be processed by a microcontroller such as Arduino. A common use is automatically switching lights on and off based on ambient light intensity. Think of a garden light that only turns on when it gets dark, or a room that is automatically illuminated when the sun sets. This module is ideal for such applications because it responds accurately to changes in light and is easy to integrate into existing projects.

Photosensitive sensor

An electronic component that detects changes in light intensity and generates a variable electrical signal. This sensor is often based on a photocontroller (LDR), which changes its resistance depending on the amount of light falling on it.

3-Pin and 4-Pin connection

The module features a 3-pin or 4-pin connector, depending on the version. The 3-pin version usually has VCC, GND, and an analog output (AO). The 4-pin version adds a digital output (DO), which provides a switching signal at a preset light threshold.

3.3V-5V operating voltage

The module operates on a wide voltage range of 3.3V to 5V, making it compatible with many popular microcontrollers such as Arduino Uno, Nano, ESP32, and Raspberry Pi Pico.

How can I use this sensor in a practical project, such as an automatic night light?

A user on an electronics forum recently shared his experience building a night light for his garden. He used a 4-pin photosensitive sensor module to automatically turn on the lamp when it got dark. His solution worked so well that he even added a small rain gauge to activate the lamp only during dry weather – a combination of light and humidity sensors. Here is how you can build this yourself:

1. Connect the VCC pins of the sensor module to the 5V port of your Arduino.
2. Connect the GND pins to the ground port of the Arduino.
3. Connect the analog output (AO) to an analog input (e.g. A0) of the Arduino.
4. Use an LED or relay as an output device, connected to a digital port (e.g. D8).
5. Program the Arduino with a simple script that reads the analog value and compares it to a threshold value. If the value drops below the threshold (dark), the LED switches on.

This solution is not only easy to build, but also very energy-efficient and reliable. Many users report that the module functions well even in extreme conditions – such as rain or dust – as long as the connections are properly shielded.

NB!! This is the 3pin module
