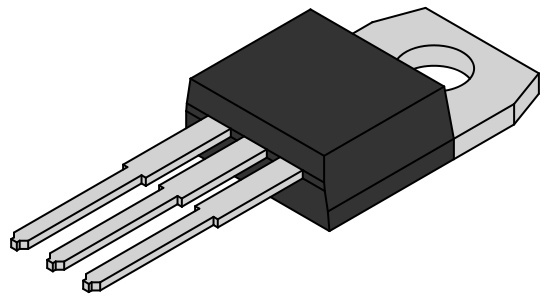

L7809CV Fixed Voltage Regulator 9V 1.5A

 DESCRIPTION

The L7800 series with three terminals is positive
regulators is available in TO-220, TO-220FP,
TO-220FM, TO-3 and D2PAK packages and
different fixed output voltages, making it usable in one
wide range of applications. These supervisors can
provide local card arrangement, thereby reducing the
distribution problems associated with a single point
regulation. Each type uses internal power
limiting, thermal shutdown and safe environment
protection, making it essentially indestructible. If
sufficient heat dissipation is provided, that is possible
deliver more than 1A output current. Although designed
mainly as fixed voltage regulators, these
Devices can be used with external components to
obtain adjustable voltage and currents.

CHARACTERISTICS

OUTPUT CURRENT UP TO 1.5A
BASIC VOLTAGES OF 5; 5.2; 6; 8; 8.5; 9; 10; 12; 15; 18; 24V
THERMAL OVERLOAD PROTECTION
SHORT-TERM SECURITY
OUTPUT PROTECTION
