• Built-in 78M05, get power from drive power, however, when drive power over 12V, use the external 5v power as the power supply.
  • Large capacity filter capacity, afterflow protection diode, more stable and reliable.
    specification:

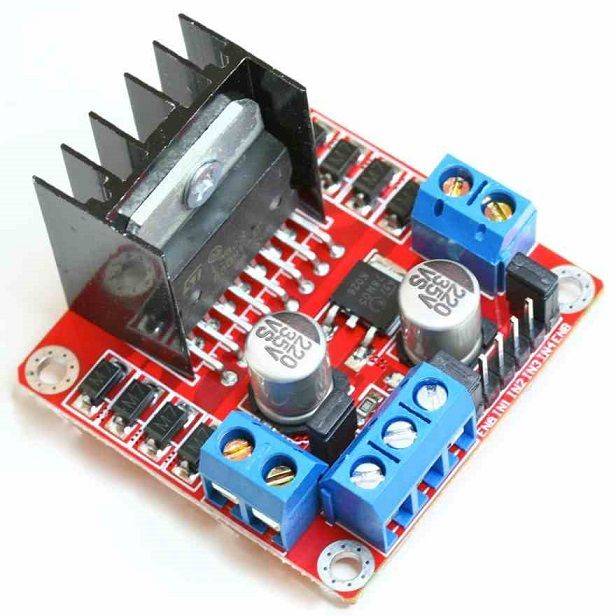

  • double H bridge drive
  • Chip L298N
  • logical voltage 5 V
  • Drive voltage 5 V-35 V
  • logical current 0mA-36mA
  • Drive current 2A (MAX single bridge)
  • storage temperature -20 to + 135 Max power 25 W
  • Size: 43x43x27mm
